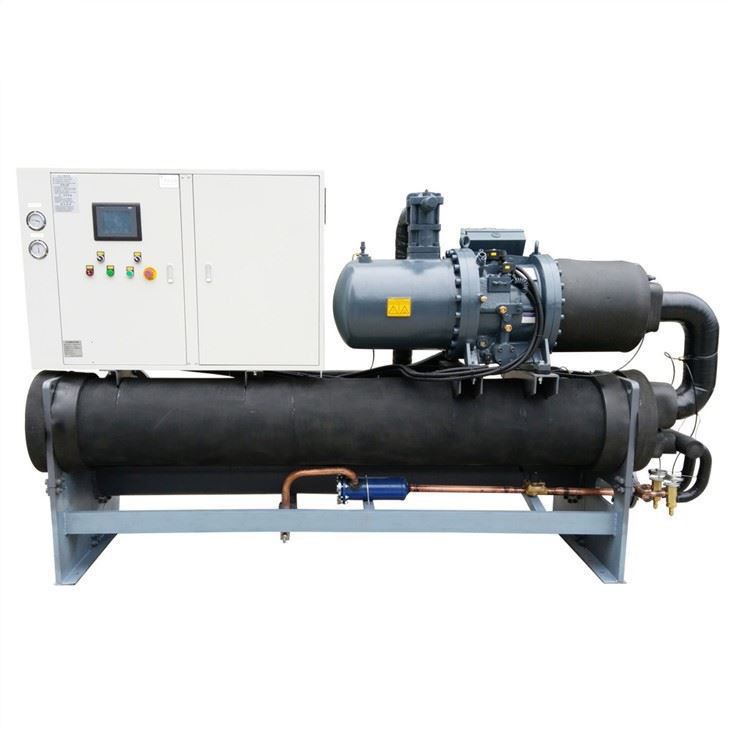

Ti Tube Evaporator Pas Dej Chiller
1. Kev piav qhia yooj yim
Cov chiller no tuaj yeem siv rau ob qho tib si dej tshiab thiab dej hiav txwv. Nws yog qhov tsim nyog rau tsev so, tsev so, tsev noj mov, khw muag khoom noj nqaij nruab deg, aquariums, thiab aquaculture farms los kho thiab tswj cov dej kub ntawm cov pas dej ntses.
Peb ua los ntawm cov khoom zoo siab ntshiab titanium los ua cov khoom siv hluav taws xob, uas muaj zog corrosion kuj thiab tuaj yeem hloov mus rau cov dej hiav txwv tshiab thiab cov kua qaub-puag.
Ntawm no peb tau qhia txog lub hau ntswj dej chiller no yog siv rau kev cob qhia aquaculture.Peb txais yuav los tiv thaiv corrosive Ti khoom evaporator kom lub neej ntev.
2.Specs cov lus
| Yam khoom | Specification / Supplier | ||
| Lub peev xwm txias | Qauv | AYD-120W | |
| kw/h | 400 | ||
| Lub zog nkag | kws | 86.7 | |
| Fais fab mov | 380V-3N{2}}HZ | ||
| Qhov hluav taws xob kub (ºC) | 10 | ||
| refrigerant tswj | Expansion valve | ||
| Txias lub voj voog | ib | ||
| tub yees | R407C | ||
| Qhov Loj (mm) L × W × H | 1800*900*1800 | ||
| Compressor | Style | Semi-hermetic ntsia hlau | |
| Quantity (set) | 1 | ||
| Compressor zog (kw) | 86.7 | ||
| Condenser | Style | Plhaub thiab Tube / 1set | |
| Cov yeeb nkab loj (DN) | 100 | ||
| Cua txias ntauwd ntws (m3 / h) | 72.6 | ||
| Evaporator | Style | Plhaub thiab Tube / 1set | |
| Dej txias (m 3 / h) | 51.6 | ||
| Cov yeeb nkab loj (DN) | 100 | ||
| Cov cuab yeej tiv thaiv | 1, Phase tiv thaiv 2, Ntxuam overload tiv thaiv 3, High / low voltage tiv thaiv 4, overheat tiv thaiv 5, Anti-freeze tiv thaiv | ||
| Qhov hnyav (kg) | 2050 | ||
| Qhov hnyav ua haujlwm (kg) | 2250 | ||
| Qhov tseem ceeb | |||
| Compressor | Hanbell/Fusheng | ||
| Hluav taws xob | LS / Carlo | ||
| Electromagnetically valve | Emerson | ||
| Expansion Valve | Emerson | ||
| Hluav taws xob tswj | Punp | ||
3.Product Paub meej:
