Lub tshuab cua txias tshuab chiller yog qhov tseem ceeb hauv ntau qhov kev tsim khoom thiab cov txheej txheem kev lag luam uas tswj qhov kub thiab txias yog qhov tseem ceeb. Cov tshuab no yog siv los tshem tawm cov cua sov los ntawm ntau cov txheej txheem kev lag luam thiab tswj xyuas qhov kub thiab txias rau kev ua haujlwm zoo thiab txhim khu kev qha. Nov yog qee cov ntsiab lus tseem ceeb uas yuav tsum xav txog thaum cuam tshuam nrog cov tshuab cua txias chiller:
1. System Cheebtsam:
Chiller Unit: Lub plawv ntawm lub kaw lus, lub tshuab chiller, yog lub luag haujlwm rau kev ua kom cov dej txias. Nws muaj lub voj voog tub yees uas tshem tawm cov cua sov ntawm cov kua thiab dissipates nws mus rau ib puag ncig ib puag ncig.
Compressor: Lub tshuab compressor yog ib qho tseem ceeb ntawm cov khoom siv hauv cov tub yees thiab compresses kom nws qhov kub thiab txias.
Evaporator: Lub evaporator yog qhov chaw sib pauv cua sov tshwm sim. Nws tso cai rau cov txheej txheem ua kua kom nqus tau cov cua sov los ntawm daim ntawv thov thiab tom qab ntawd circulates cov tub yees txias rov qab rau hauv compressor.
Condenser: Lub condenser tso tawm cov cua sov uas nqus los ntawm cov tub yees mus rau cov huab cua nyob ib puag ncig los yog lub tshuab cua txias. Nws ua rau lub refrigerant condense rov qab mus rau hauv lub xeev ua kua.
Expansion Valve: Lub valve no tswj cov dej ntws ntawm cov kua txias txias rau hauv cov evaporator, qhov twg nws nthuav dav thiab vaporizes, nqus cua sov los ntawm cov txheej txheem kua.
2. Hom Chillers:
Cua-Cooled Chillers: Cov chillers no siv cua ambient kom dissipate cua sov los ntawm cov tub yees. Lawv kuj yooj yim rau nruab thiab xav tau kev saib xyuas tsawg dua, tab sis lawv cov kev ua tau zoo yuav qis dua hauv qhov chaw kub heev.

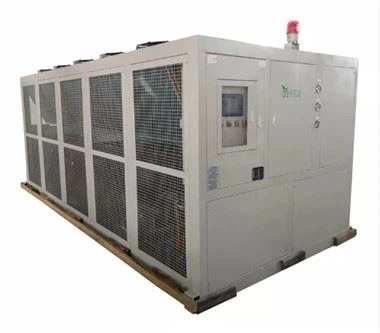

130HP cua txias industrial chiller system datasheet:
|
Yam khoom |
Specification / Supplier |
||
|
Qauv |
AYD-130A |
||
|
Lub peev xwm txias |
kw/hr |
312.6 |
|
|
ton/hr |
88.88 |
||
|
Lub zog nkag |
kws |
96.94 |
|
|
Tam sim no |
A |
174.5 |
|
|
Temp qhov hluav taws xob (degree) |
7 |
||
|
Fais fab mov |
460V-3N{2}}HZ |
||
|
refrigerant tswj |
Expansion valve |
||
|
Txias lub voj voog |
plaub |
||
|
tub yees |
R410A |
||
|
Qhov Loj (mm) L × W × H |
5000*2200*2200 |
||
|
Compressor |
Style |
Scroll hom |
|
|
Qauv |
SH295-4 |
||
|
Quantity (set) |
4 |
||
|
Compressor zog (kw) |
89.44 |
||
|
Pib Txoj Kev |
100%-75%-50%-25% |
||
|
Condenser
|
Style |
Fin thiab Copper Pipe |
|
|
Cua Volume (m3/h） |
132000 |
||
|
Ntxuam Qty (pcs) |
6 |
||
|
Lub zog kiv cua (kw) |
11.1 |
||
|
Evaporator |
Style |
Plhaub thiab Copper Tube / 1set |
|
|
Cov dej txias txias (m3/h） |
53.8 |
||
|
Tube loj (DN) |
100 |
||
|
Lub twj tso kua mis (kw) |
7.5 |
||
|
Cov cuab yeej tiv thaiv |
1. Phase tiv thaiv 2.Ntxuam overload tiv thaiv 3.High/low voltage tiv thaiv 4. overheat tiv thaiv 5.Anti-freeze tiv thaiv |
||
|
Qhov hnyav (kg) |
3750 |
||
|
Qhov tseem ceeb |
|||
|
Compressor |
Danfoss |
||
|
Condenser |
Anyda |
||
|
Hluav taws xob |
LS / Carlo |
||
|
Expansion Valve |
Emerson |
||
|
Hluav taws xob tswj |
Siemens |
||
Dej-Cooled Chillers: Cov tshuab dej txias siv lub tshuab ua kom txias txias kom dissipate cua sov los ntawm lub tub yees. Lawv muaj zog ntau dua nyob rau hauv ntau qhov xwm txheej tab sis xav tau cov dej khov kho thiab cov txheej txheem ntxiv.
Evaporative Condenser Chillers: Cov khoom no ua ke ntawm cov tshuab cua txias thiab dej txias, siv dej thiab cua kom txias cov tub yees.
3. Qhov loj thiab muaj peev xwm:
Kev loj hlob zoo yog qhov tseem ceeb los xyuas kom meej tias lub chiller tuaj yeem tswj cov cua sov ntawm cov txheej txheem kev lag luam. Ib qho chiller qis dua tuaj yeem ua rau tsis txaus cua txias, thaum ib qho loj tuaj yeem ua rau lub zog khib nyiab thiab cov nqi ntau dua.
4. Kev Siv Hluav Taws Xob:
Kev xaiv lub tshuab hluav taws xob txuag hluav taws xob tuaj yeem ua rau muaj kev txuag nyiaj ntau dhau sijhawm. Saib rau cov tshuab uas muaj qhov ntsuas hluav taws xob siab (EER) lossis Coefficient of Performance (COP) kev ntsuas.
5. Kev tu:
Kev saib xyuas tsis tu ncua yog qhov tseem ceeb los ua kom lub tshuab chiller ua haujlwm ntawm qhov ua tau zoo tshaj plaws. Qhov no suav nrog kev ntxuav cov condenser thiab evaporator coils, tshuaj xyuas cov tub yees qib, tshuaj xyuas kev sib txuas hluav taws xob, thiab saib xyuas kev ua haujlwm tag nrho.
6. Txheej txheem Optimization:
Kev sib xyaw ua ke ntawm chiller system rau hauv koj cov txheej txheem kev lag luam tuaj yeem ua rau muaj txiaj ntsig zoo dua. Xav txog yam xws li cov txheej txheem ntws, qhov sib txawv ntawm qhov kub thiab txias, thiab kev tswj tag nrho cov txheej txheem.
7. Kev txiav txim siab txog kev nyab xeeb:
Chiller systems koom nrog kev tuav cov tub yees, uas tuaj yeem ua rau muaj kev phom sij. Cov txheej txheem kev nyab xeeb thiab cov txheej txheem yuav tsum tau ua raws li thaum lub sij hawm installation, tu, thiab kho.
8. Kev cuam tshuam ib puag ncig:
Qee cov tub yees siv hauv chillers tuaj yeem muaj kev cuam tshuam ib puag ncig, tshwj xeeb tshaj yog nyob rau hauv cov nqe lus ntawm ozone depletion los yog lub ntiaj teb ua kom sov. Xav txog kev siv cov tub yees zoo ib puag ncig yog tias ua tau.
9. Automation thiab tswj:
Cov tshuab chiller niaj hnub no feem ntau suav nrog kev siv tshuab thev naus laus zis thiab kev tswj hwm cov yam ntxwv, tso cai rau kev saib xyuas cov chaw taws teeb, kuaj xyuas, thiab kev hloov kho. Qhov no tuaj yeem pab txhim kho kev ua tau zoo thiab txo qis sijhawm.
Thaum ua haujlwm nrog cov tshuab cua txias chiller, nws yog ib qho tseem ceeb uas yuav tau sab laj nrog cov kws tshaj lij hauv kev ua haujlwm, xws li HVAC engineers lossis chiller manufacturers, kom paub meej tias tsim nyog, kev teeb tsa, thiab kev saib xyuas rau koj daim ntawv thov kev lag luam tshwj xeeb.
