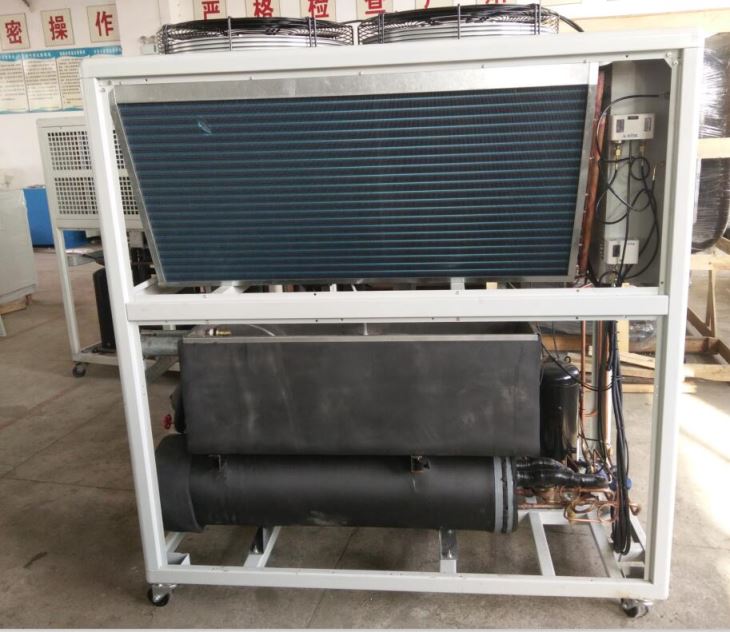

15 Hp 40 Kw Dej cua txias Chiller Unit Muaj
hauj lwm yam khoom
Muaj dej Chillers yog siv rau cov tshuaj txias ntawm cov khoom, mechanisms thiab lub Hoobkas machinery nyob rau hauv ib tug ntau ntawm cov lag luam, xws li yas txhaj tshuaj thiab tshuab molding kev lag luam. Cov muaj Chillers pab los txhim kho lub ntau lawm efficiency thiab txo cov rejection piv ntawm tas cov khoom. Ib tug chiller yuav siv ib tug vapor compression los yog haum voj voog kom txias.
Yam | Specification / Tsum | ||
cua txias peev xwm | Model | Ayd - 15 A | |
kw / h | 40 | ||
Fais fab tswv yim | kw | 13 | |
Temp qhov hluav taws xob (Dec C) | 7 | ||
Hwj chim Mov | 38 0V-3N- 6 0HZ | ||
refrigerant tswj | expansion valve | ||
tub yees vajvoog | ob | ||
refrigerant | R 22 | ||
Dimension (mm) L * W * H | 170 0 * 9 00 * 165 0 | ||
Compressor | style | S croll | |
Kom muaj nuj nqis (set) | 2 | ||
Compressor Fais fab (kw) | 11 | ||
condenser
| style | Fin | |
Cua Volume (m 3 / h) | 158 00 | ||
Evaporator | style | Plhaub thiab cov raj / 1set | |
Dej txias txaus (m 3 / h) | 8.6 | ||
Tank Volume (L) | 285 | ||
Twj tso kua mis Fais fab (kw) | 1.5 | ||
Yeeb Nkab loj (G) | 2 " | ||
protector Ntaus | 1. Theem protector 2. Ntxuam overload protector 3. High / tsis tshua muaj voltage protector 4. overheat protector 5. Anti-freeze protector | ||
Unit Nyhav Li Cas (kg) | 59 0 | ||
Main Qhov | |||
Compressor | Panasonic | ||
Hauv | LG / Carlo | ||
Electromagnetically valve | Emerson | ||
expansion Valve | Emerson | ||
Hluav taws xob cov tswj | Punp | ||
Saj zawg zog & Shipping
1.Delivery Lub sij hawm: 15-30days, uas nyob rau hauv tus qauv thiab quatity.

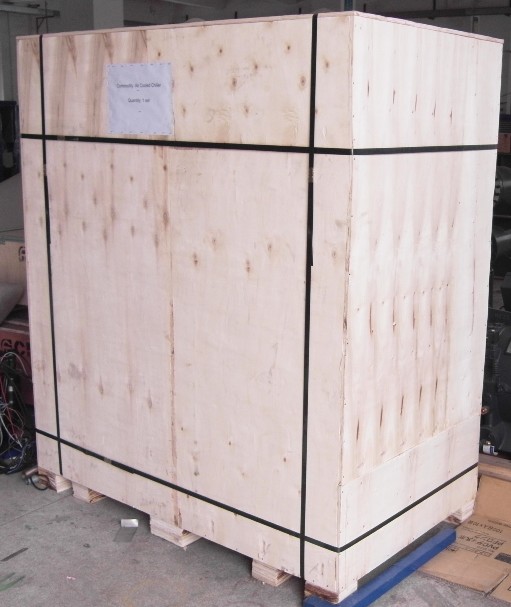

2.Package: ntoo cov ntaub ntawv
3.Payment: 30% TT li cov deposit, 70% balanced ua ntej tus me nyuam.
4.Warranty: 1year.During lub sij hawm no, yog ib co qhov chaw lawm, peb yuav xa koj lub tshiab rau hloov.
peb pab
1.Reply koj nug li ntawm 12 ua hauj lwm teev.
2.Strong R & D pab neeg, ntau tshaj 15 xyoo ntawm raug chiller kev. OEM & ODM yog txais tos.
3.Direct Hoobkas, kev neeg sis tw nqi uas muaj zoo chiller.
4.Strict zoo tswj system, kev QC pab neeg.
