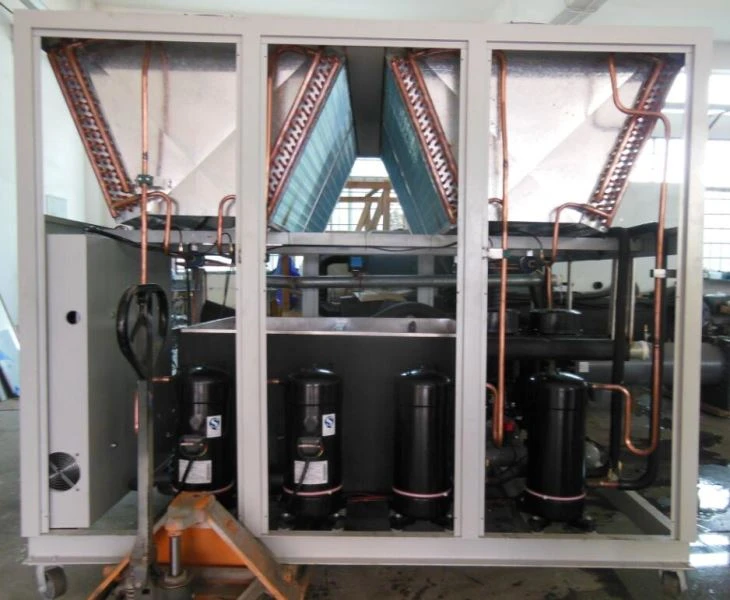

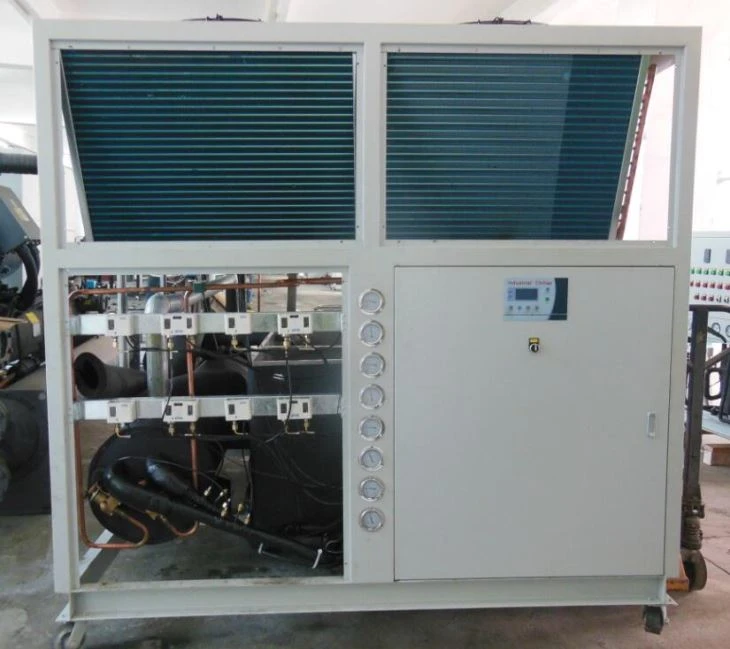

Ntim 30 Tuj 40 HP 110 Kw Cua cua txias Dej Chiller Nrog Copeland Compressor hauj lwm:
1.Anyda hluav taws xob cua txias chiller siv high efficiency semi-hermetic ntsia hlau compressor
Nws muaj peev xwm paub 4 cov kauj ruam lossis tsis muaj peev xwm tswj kev ua tsis taus. Qhov cim hleev cage compressor lub cav pib los ntawm Y hom yuav pib pib tam sim no los ntawm 33%, tau txias los ntawm lub tub yees.
2.Cov cua txias cua txias chiller siv hluav taws xob cua kub sib tshooj siab
Nws zoo li M-shaped tsim, puab grooved & patent sawtooth tsim thiab hydrophilic aluminium fin guaranteed kub hloov txav ntawm huab cua sab exchanger thiab cua txias.
3.Anyda cua txias cua txias chiller siv plhaub & tube thawv hluav taws xob
Hom qhuav & raj hluav taws kub sib tshuam nrog cov puab grooved tooj liab optimizes qhov txias & cov cua sov efficiency. Kev tswj yus tus kheej, kev siv siab, kev tsim los ntawm kev sib tsoo thiab hluav taws kub rwb thaiv tsev npog cov khoom ua kom lub plhaub & lub rhaub hluav taws kub tsis txhuam tsis tau, txhim khu kev qha, nyob ntsiag to, zoo heev.
4.Anyda cua txias cua txias chiller nruab nrog kev tiv thaiv tag nrho
Kev tiv thaiv dej tsis zoo, tiv thaiv kev tiv thaiv siab / tsis tshua muaj kev tiv thaiv, tiv thaiv kev tiv thaiv kev tiv thaiv, kev tiv thaiv overload, kev tiv thaiv kev tiv thaiv thiab roj theem tiv thaiv kom muaj kev ntseeg siab thiab ruaj khov.
Applied Machinery: txias zog ntawm roj kub, ultrasonic, siab zaus machinery, kev txhaj tshuaj molding tshuab, tshuab moulding machinery.
| Yam khoom | Specification / Supplier | ||
| Cua txias peev | Qauv | AYD-40A | |
| Kw / h | 110 | ||
| Fais fab tuag input | Kw | 35 | |
| Temp Outlet (ºC) | 5-35 | ||
| Kev tswj tub yees | Expansion valve | ||
| Cov tub yees tub yees | Plaub | ||
| Tso dej txias | R22 | ||
| Dimension (hli) L * W * H | 2100 * 1800 * 2000 | ||
| Compressor | Style | Scroll | |
| Tus Nqi (teeb) | 4 | ||
| Compressor zog (kw) | 30 | ||
| Condenser | Style | Fin hom | |
| Tus Nqi (teeb) | 4 | ||
| Lub hwj chim (kw) | 3.4 | ||
| Cua Volume (m3 / h) | 48000 | ||
| Evaporator | Style | Plhaub thiab Tube / 1set | |
| Cov dej txias txaus (m3 / h) | 19 | ||
| Cov yeeb nkab loj (DN) | 80 | ||
| Pump Power (kw / h) | 3.75 | ||
| Tank (L) | 600 | ||
| Protector Dais | 1.Phase protector 2. Hla lub overload protector 3.High / tsawg voltage protector 4.Haus tus neeg tiv thaiv 5.Anti-freeze protector | ||
| Chav Luj (kg) | 1200 | ||
| Kev Lom Kev Lom Zem (kg) | 1500 | ||
| Qhov Phaj Tshab | |||
| Compressor | Sanyo | ||
| Hluav taws xob | LS / Carlo | ||
| Electromagnetically valve | Emerson | ||
| Expansion Valve | Emerson | ||
| Hluav taws xob tswj | Tshaj tawm | ||
Cov Lus Nug:
1. Ua li cas lub tshuab chiller ua haujlwm?
Chiller muaj ob txoj kev, ib qho yog txheej txheem dej, lwm yog cov tub yees roj cia. Txhuav tau los ntawm cov txheej txheem. Hloov tsheb mus rau tub yees kev cia siab.Heat tshem tawm rau huab cua lossis dej.
2.Txog li cas los ntsuas lub peev xwm txias rau chillers
Txias Txias (kw) = Ndiv Npaum (m3 / h) * Hloov Siab (T1-t2) /0.86
Tshav Kub Load = C (meej kub) * M (zoo tso zis ib teev) * Hloov Hloov (T1-T2)
3.Types ntawm chiller system?
Cua Txias Chiller thiab Dej Txias Chiller.Water txias chiller xav tau ib lub thawv txias sib cais thiab muaj kev ua tau zoo dua, tab sis yooj yim dua cov cua txias.
4.Cauling capacity peev hloov tsev neeg?
1 kcal / h = 1.163W, 1 W = 0.8598 kcal / h;
1 Btu / h = 0.2931W, 1 W = 3.412 Btu / h;
1 USRT = 3.517 kW, 1 kW = 0.28434 USRT;
1 kcal / h = 3.968 Btu / h, 1 Btu / h = 0.252 kcal / h;
1 USRT = 3024 kcal / h, 10000 kcal / h = 3.3069 USRT;
5. Qhov dej txias tuaj yeem ua kom sov rov qab tuaj?
Tau, thov koj xa peb lub voj voos thiab dej ntub txhua lub sijhawm.
6. Kev tu vaj tse?
Kauj Ruam 1: Khaws Khiab Ntxuav
Kauj Ruam 2: Xyuas kom lub Tshaj Tawm Tsis Pub Dawb
Kauj Ruam 3: Kev Kho Dej Kom Muaj Tiag (Kev tiv thaiv kom tsis txhob muaj teeb meem, txhuam hniav)
Kauj Ruam 4: Tshawb Fawb Cov Roj Thiab Cov Tub Ntxhais
